Turbocharger Bearing

Reliable Tcbb61834 Turbo Bearing for High-Speed Automotive Turbocharger Systems

All Category

Nail Drill Bearing

Ms. Kaphy Chan

Kaphy@sksbearing.com

+8613925974815

wxid_u4bdekgr022p22

Chat Now

Reliable Tcbb61834 Turbo Bearing for High-Speed Automotive Turbocharger Systems

MOQ:	10
Price:	47

Detail Information

Product Description

Detail Information

Model NO.:

61834

Core Advantages1:

Dual Performance Enhancement

Core Advantages2:

Durability And Reliability

Core Advantages3:

High-Speed Rotation Support

Applications:

Suitable For Automotive, Industrial Sectors, Etc.

Transport Package:

Packaging Box

Specification:

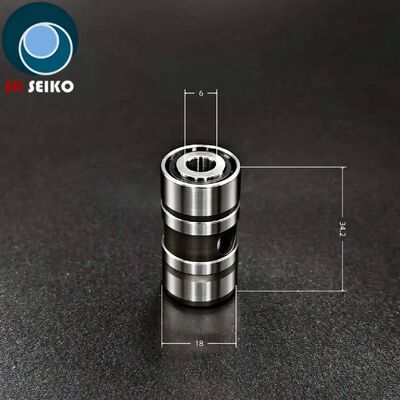

6*18*34.2mm

Trademark:

SKS

Origin:

China

Production Capacity:

2000 Units Per Month

Highlight:

Turbocharger bearing for high-speed systems

Turbo bearing with warranty

Automotive turbocharger bearing replacement

Product Description

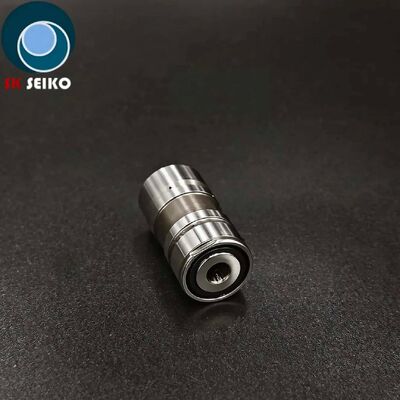

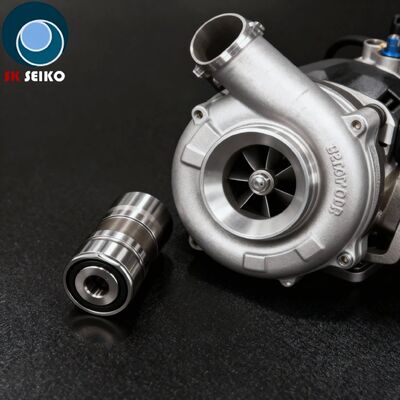

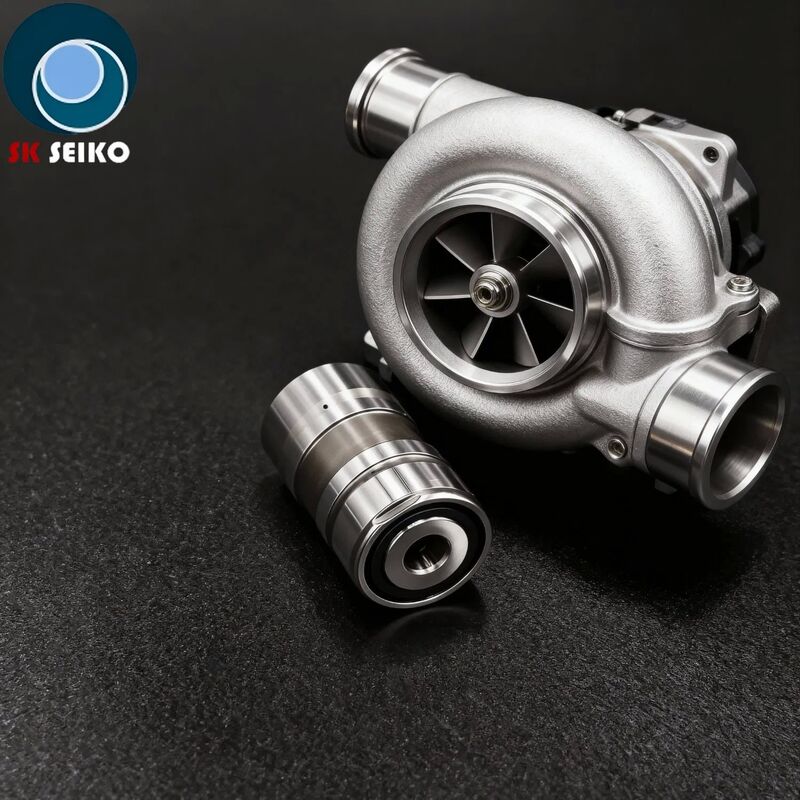

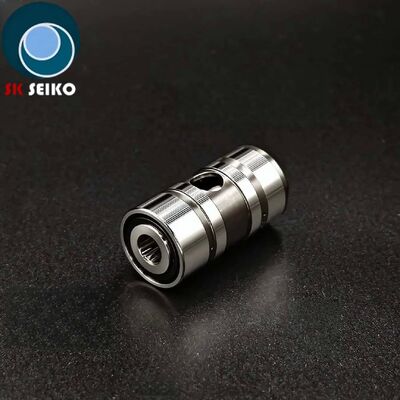

TCBB61834 6*18*34.2 Turbocharger Dual Ceramic Ball Bearing
Product Description:
Turbocharger Ball Bearings are designed for applications in both automotive and industrial sectors. These bearings serve as the mechanical component that supports the high-speed rotation of the turbocharger. By enabling efficient air compression, they enhance engine power output and fuel efficiency. Turbocharger Ball Bearings not only ensures smooth and efficient operation but also achieves outstanding boost pressure.
Within the turbocharging system, they play a crucial role through their design of a ball bearing assembly that supports the turbine shaft, reducing friction and enabling higher rotational speeds. These bearings offer dual benefits: reduced start-up times and improved transient response, while delivering exceptional performance and durability in high-performance applications.
Turbocharger Ball Bearings Application : Perfectly usable for automotive field, industrial field etc.
For the automotive industry:
Passenger and Commercial Vehicles: Widely used in gasoline/diesel turbocharged engines, especially in high-performance models (such as sports cars and trucks), they balance environmental regulations and driving performance by improving fuel efficiency ( reducing fuel consumption by 10%-15% ) and power output.
New Energy Hybrid Systems: Assisting motor drive in electric turbos to enhance the instant torque response of hybrid vehicles and optimize energy recovery efficiency.
For industrial field:
Power Generation Equipment: Used in gas turbines and turbocharged diesel generators to improve energy conversion efficiency and ensure stable continuous power supply.
Construction Machinery and Marine Vessels: Supporting continuous boosting under high-load conditions in excavators and large marine engines, reducing equipment downtime and maintenance frequency.
Aerospace: With lightweight and high-reliability characteristics, they are suitable for power needs in extreme environments, such as auxiliary power units (APUs) and small turbo engines.
Key Advantages of Our Turbocharger Ball Bearing Products:
1. Dual Performance Enhancement
Optimized Startup Efficiency: The low-friction design significantly shortens the startup delay of the turbocharger, allowing the engine to quickly build boost pressure even at low speeds.
Enhanced Boost Efficiency: By stably supporting the high-speed operation of the turbine shaft, ball bearings achieve more precise air compression, helping the engine generate higher boost pressure, thereby enhancing power density (such as, a 30%-50% power increase in diesel engines).
2. Durability and Reliability
Made from high-strength alloy materials and surface coating technologies, ball bearings maintain anti-wear and anti-corrosion properties under high-temperature (300-1000°C) and high-vibration complex conditions, with a service life of hundreds of thousands of hours to meet the long-cycle operation requirements of industrial equipment.
3. High-Speed Rotation Support
Turbocharger Ball bearings significantly reduce the rotational friction of the turbine shaft through a precisely arranged ball component structure , enabling it to withstand extremely high speeds of 200,000 rpm of revolutions per minute. This low-friction feature not only reduces energy loss but also directly enhances the engine's instant boost response
Turbocharger dual ceramic ball Bearings features:
1)Tolerance of precision grade P4 (ABEC 5)
2) Regular rotating speed 120K rpm
3) Maximum rotating speed up 200K rpm
4) Special design of sealed structure, superiorly dust-proof
5) Less vibration, Less noise, Antirust, Corrosion resistant,Heat-resistant

Product Parameters:

NO.	Bearing type	d Bore(mm)	D Outer(mm)	B height (mm)	Retainer(Cage)	Balls material
		d	D	B
1	61834	6	18	34.2	Black /Silver	ceramics
2	62036	6.5	20.4	36.7	Black /Silver	ceramics
3	72038	7	19.8	36.26	Black /Silver	ceramics
4	82242G02	8.8	22	53.7	Black /Silver	ceramics
5	82242G04	8.8	22	42.5	Black /Silver	ceramics
6	82242G05	8.8	22	42.5	Black /Silver	ceramics
7	102844	10.8	28.2	44.55	Silver	ceramics
8	102855	10.2	28.2	55.2	Silver	ceramics
9	133566	13	35	66	Black /Silver	ceramics
10	164468	16	44	68	Black /Silver	ceramics

Q: Delivery and Carriage
There are three ways to deliver the qoods.One is Exoress ,such as DHL, UPS, TNT and Fedex.The charg of them is from Us$ 10.0/kG to Us$ 20.0/KG if We pay the freightin china. It is most convenient because of door to dorThis method is suitable to a few goods such as less than 20KGAnother is air parcel, you should go to airot to takethe qoods yousewes, The dharge is cheaper than expres, but you should pay the charges of customs dearance and we should paythe
charoes of dearance of goods, these charges are fixed no matter what weight or volume it is, This method is suitable to the gods which are more than 100KG.The rest one is ocean shipping, it is rather cheap, and it will take about 15-30 days to the pot if you are in the North America or the Europe.In general, we deliver the samples by Express, such as DHL, UPS, TNT and Fedex, and ship the goods of order by ocean shipping.

Q:Payment
By T/T: 30% deposit, 70% balance before the shipment.

Q: Claims and returns
We usually confirm with you before you place an order. If any defective products are received, you may return them, and we will bear the freight costs for these items. Alternatively, you may request us to replace the defective products promptly, and we will cover all associated shipping fees in full.We also provide a lifespan guarantee for our products. Typically, we offer a minimum of 6 months of lifespan warranty.
