High Speed Dental Bearing

Dental Handpiece Bearing Sr144tlzk1n Ceramic Ball Bearing for Precision Dental Handpiece Systems

All Category

Nail Drill Bearing

Ms. Kaphy Chan

Kaphy@sksbearing.com

+8613925974815

wxid_u4bdekgr022p22

Chat Now

Dental Handpiece Bearing Sr144tlzk1n Ceramic Ball Bearing for Precision Dental Handpiece Systems

MOQ:	20
Price:	4.9

Detail Information

Product Description

Detail Information

Model NO.:

SR144TLZK1N

Materials Of Balls:

Stainless Steel & Ceramic

Product Features1:

High-Speed Stability

Product Features2:

Stable Operation At 450,000 Rpm

Product Features3:

Maintenance-Free&Long Life

Product Features4:

Corrosion-Resistant

Precision Design:

P4-Grade Precision

Customizable:

Customizable

Transport Package:

Plastic Tubing

Specification:

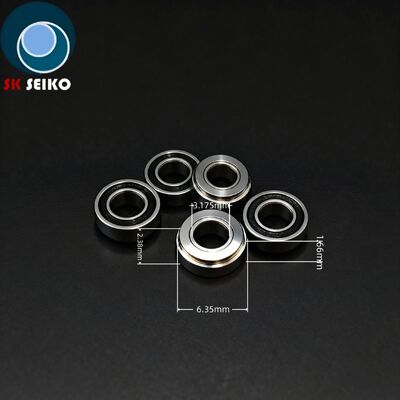

3.175*6.35*2.38mm

Trademark:

SKS

Origin:

China

HS Code:

84821020

Production Capacity:

100, 000 Units Per Month

Highlight:

Dental handpiece ceramic ball bearing

Precision dental handpiece bearing

High speed dental bearing with warranty

Product Description

SR144TLZK1N 3.175*6.35*2.38 High Speed Dental Bearing
Â
Requirements for High-Speed Dental Bearings:
Ultra-High-Speed Operation: Support 300,000-480,000RPM for precise tooth preparation.
High-Temperature Resistance&Corrosion Resistance: Withstand 120-135ÂºC autoclaving and oral acidic/alkaline environments.
Longevity & Maintenance-Free: Service life > 8 months with minimal replacements.
Bearing dimensions:3.175*6.35*2.38mm,3.175*6.35*2.78mmÂ etc.Â
Bearing structure : One shield (normal shield)Â or Double Shield
Â
Product Features:
Perfectly usable for many brands and models of high-speed dental handpieces
Materials: AISI 440C stainless steel, SiÂ³N4 ceramic or stainless steel balls.
Precision: P4 grade or ABEC-7 standard.
Lubrication: Sealed design or solid lubrication.

High speed dental handpiece bearing Product Parameters:

NO.	Dental handpiece Â Bearing type	Inside Diameter	Outer Diameter	Inner ring width	Outer ring width	Step outside diameter	Step width	Flange outer diameter	Flange width	RPM
NO.	Â	d	D	B	C	DK	CK	DF	CF	RPM
1	SR144Z	3.175	6.35	2.38	2.38	-	-	Â	Â	450000/min
2	SR144ZK(step)	3.175	6.35	2.38	2.38	5.98	0.98	Â	Â	450000/min
3	SR144ZW	3.175	6.35	2.78	2.78	-	-	Â	Â	450000/min
4	SR144ZWK(step)	3.175	6.35	2.78	2.78	5.98	0.98	Â	Â	450000/min
5	SFR144Z	3.175	6.35	2.38	2.38	-	-	7.518	0.584	450000/min
6	SFR144ZW	3.175	6.35	2.78	2.78	-	-	7.518	0.787	450000/min
7	SR2-5Z	3.175	7.938	3.571	3.571	-	-	-	-	400000/min
8	SFFR144WZ	3.175	7.5	2.78	2.78	Â	Â	7.5	Â	450000/min
9	SFR144GWZ	3.175	7.5	2.78	2.78	Â	Â	7.5	Â	450000/min
10	SFR144KZ1WZ	3.175	6.35/7.5	2.78	2.78	6.35	Â	7.5	Â	450000/min
11	SR144K1Z	3.175	6.35	2.38	2.38	5.88	Â	Â	Â	450000/min

Q: Delivery and Carriage
There are three ways to deliver the qoods.One is Exoress ,such as DHL, UPS, TNT and Fedex.The charg of them is from Us$ 10.0/kG to Us$ 20.0/KG if We pay the freightin china. It is most convenient because of door to dorThis method is suitable to a few goods such as less than 20KGAnother is air parcel, you should go to airot to takethe qoods yousewes, The dharge is cheaper than expres, but you should pay the charges of customs dearance and we should paythe
charoes of dearance of goods, these charges are fixed no matter what weight or volume it is, This method is suitable to the gods which are more than 100KG.The rest one is ocean shipping, it is rather cheap, and it will take about 15-30 days to the pot if you are in the North America or the Europe.In general, we deliver the samples by Express, such as DHL, UPS, TNT and Fedex, and ship the goods of order by ocean shipping.

Q:Payment
By T/T: 30% deposit, 70% balance before the shipment.

Q: Claims and returns
We usually confirm with you before you place an order. If any defective products are received, you may return them, and we will bear the freight costs for these items. Alternatively, you may request us to replace the defective products promptly, and we will cover all associated shipping fees in full.We also provide a lifespan guarantee for our products. Typically, we offer a minimum of 6 months of lifespan warranty.
