Motor Bearing 830ZZ 625ZZ 626ZZ 696ZZ 688ZZ 695ZZ 694ZZ Bearing Vacuum Cleaners Bearing Food Processing Small Appliations Bearing

Brand Name:	SKS
Model Number:	830ZZ 625ZZ 626ZZ 696ZZ 688ZZ 695ZZ 694ZZ
MOQ:	500 pcs
Price:	0.25USD
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100,000 units per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Type:

Ball Bearing

Rolling Element:

Balls

Grease Limiting Speed:

24000 Rpm

Car Make:

Many Types

Rolling Elements:

Name:

625zz Ball Bearing

Supply Ability:

100,000 units per month

Highlight:

Stable Operation Deep Groove Ball Bearing

High Accuracy 695zz bearing

long lasting 694ZZ bearing

Product Description

Product Description:

Electric motor bearing applications are very complex. Shock, temperature increasing, dust environment, are likely to occur. For brush motor, the carbon brush wear may invade bearing interior. Even in the assembly production line of the motor, tooling fixtures are often neglected that caused damage of bearings.

Electric motor bearings are used in various household appliances

Product Features:

Electric motor bearing features :

Electric motor bearing Material:

Materials we usually use are GCr15,9Cr18,9Cr18Mo. For more specific conditions, the surface of the material can also be processed again, in order to obtain better results.

Electric motor bearing Heat treatment:

All of parts after hardening heat treatment, will have been frozen processed -70°C, followed by cryogenic tissue surface residual austenite content is reduced, improving the impact resistance of the bearing.

Electric motor bearing Seal:

In order to adapt to different environments, we have developed a variety of sealing structure, a metal dust cover, nitrile rubber single lip seal, lip seals and contact seals. For particularly severe conditions of use, you can also use a composite seal. Seals are also not limited to the NBR, perfluorinated rubber temperature can exceed 180°C.

Electric motor bearing Grease:

For different conditions of the motor, we recommend customers to use the appropriate grease. Grease base oil is including mineral oil, synthetic oil (PAO or esters), PFPE, which are completely different performance characteristics. There lithium soap grease-based, aluminum, polyurea and PFPE, use effect is very different . We can select the appropriate grease to achieve ultimate performance of the motor to meet the conditions for use, including food-grade

Product Parameters:

Electric motor bearing bearing Product Parameters:

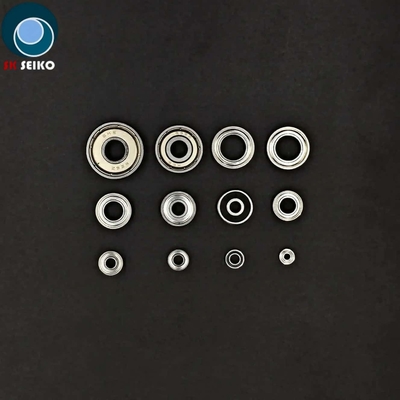

Motor Bearing 830ZZ 625ZZ 626ZZ 696ZZ 688ZZ 695ZZ 694ZZ Bearing Vacuum Cleaners Bearing Food Processing Small Appliations Bearing 0

NO.	Bearing type	Inside Diameter	Outer Diameter	Inner ring width	Shield	Retainer(Cage)	Balls material
NO.	Bearing type	d	D	B	Shield	Retainer(Cage)	Balls material
1	830	3	8	4	Double shield	bearing steel	bearing steel
2	940	4	9	4	Double shield	bearing steel	bearing steel
3	1030	3	10	4	Double shield	bearing steel	bearing steel
4	MR126ZZ	6	12	4	Double shield	bearing steel	bearing steel
5	MR148ZZ	8	14	4	Double shield	bearing steel	bearing steel
6	MR106ZZ	6	10	3	Double shield	bearing steel	bearing steel
7	MR128ZZ	8	12	3.5	Double shield	bearing steel	bearing steel
8	MR137ZZ	3	13	4	Double shield	bearing steel	bearing steel
9	R188ZZ	6.35	12.7	4.763	Double shield	bearing steel	bearing steel
10	MR104ZZ	4	10	4	Double shield	bearing steel	bearing steel
11	686ZZ	6	13	5	Double shield	bearing steel	bearing steel
12	MR52ZZ	2	5	2.5	Double shield	bearing steel	bearing steel
13	681ZZ	1	3	1	Double shield	bearing steel	bearing steel
14	683ZZ	3	7	2	Double shield	bearing steel	bearing steel
15	MR63ZZ	3	6	2.5	Double shield	bearing steel	bearing steel
16	MR74ZZ	4	7	2.5	Double shield	bearing steel	bearing steel
17	623ZZ	3	10	4	Double shield	bearing steel	bearing steel
18	R2ZZ	3.175	9.525	3.97	Double shield	bearing steel	bearing steel
19	R212ZZ	3.175	12	4	Double shield	bearing steel	bearing steel
20	695ZZ	5	13	4	Double shield	bearing steel	bearing steel
21	696ZZ	6	15	5	Double shield	bearing steel	bearing steel
22	MR84ZZ	4	8	3	Double shield	bearing steel	bearing steel
23	687ZZ	7	14	5	Double shield	bearing steel	bearing steel
24	608ZZ	8	22	7	Double shield	bearing steel	bearing steel
25	626ZZ	6	19	6	Double shield	bearing steel	bearing steel
26	MR115ZZ	5	11	4	Double shield	bearing steel	bearing steel
27	923ZZ	2.3	9	3	Double shield	bearing steel	bearing steel
28	685ZZ	5	11	5	Double shield	bearing steel	bearing steel

Application:

Our Electric motor bearings have been used in :

Food processing small appliations

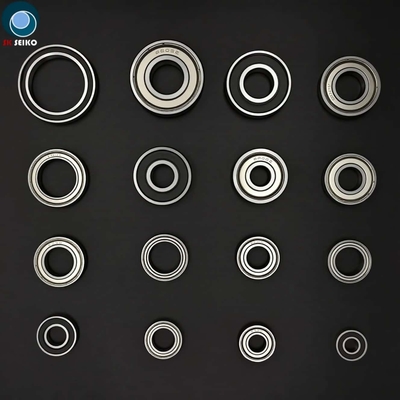

Motor Bearing 830ZZ 625ZZ 626ZZ 696ZZ 688ZZ 695ZZ 694ZZ Bearing Vacuum Cleaners Bearing Food Processing Small Appliations Bearing 1

Hand-held vacuum cleaners

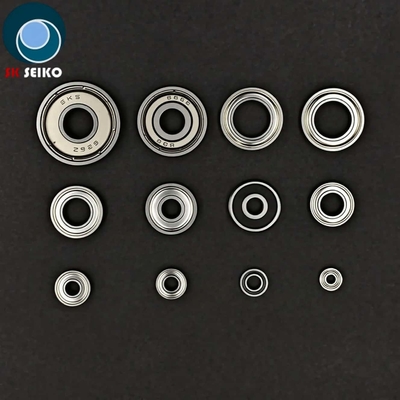

Motor Bearing 830ZZ 625ZZ 626ZZ 696ZZ 688ZZ 695ZZ 694ZZ Bearing Vacuum Cleaners Bearing Food Processing Small Appliations Bearing 2

Airpuifiers and power tools

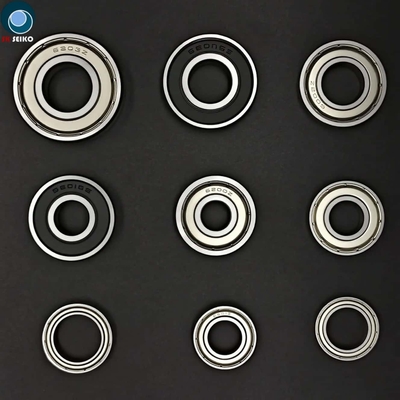

Motor Bearing 830ZZ 625ZZ 626ZZ 696ZZ 688ZZ 695ZZ 694ZZ Bearing Vacuum Cleaners Bearing Food Processing Small Appliations Bearing 3
