| Brand Name: | SKS |
| Model Number: | VCMP114-Z (C114) 45*110*19 |
| MOQ: | 50 pcs |
| Price: | 82USD |
| Payment Terms: | MoneyGram,Western Union,D/P,T/T,D/A,L/C |
| Supply Ability: | 2000 units per month |

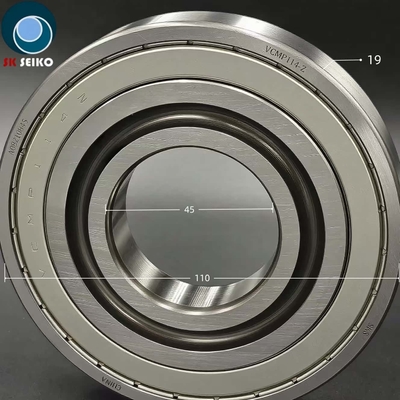

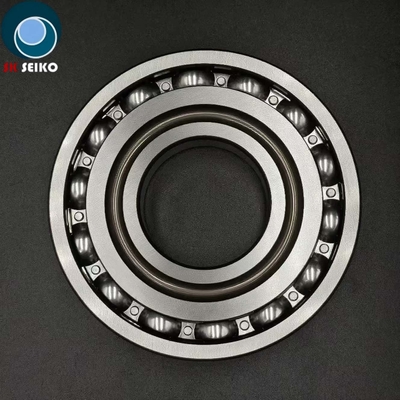

VCMP114-Z 45*110*19 Vacuum Pump Bearing C114 Dry VCMP Bearing Semiconductor Photovoltaic (PV) Lithium Battery (Li-ion Battery) Chemical Industry Pharmaceutical Industry LCD Panel
Pumps bearing specifications:
Bearing solutions for diverse pump configurations including dry vacuum pumps, precision pumps, and other specialized pump types. Suited for the automotive sector, industrial applications, and beyond. Key automotive applications: electric drive systems (E-Drive), lidar (LiDAR), and turbine superchargers. Industrial field applications: dry vacuum pumps, molecular pumps, machine tool spindles, chemical fiber winding machinery, and humanoid robot actuators.
Product Features:
Tolerance of precision grade P4 (ABEC 5)
Regular rotating speed 4500-6000 rpm
Special design of sealed structure, superiorly dust-proof
Key Advantages of Our Pumps Bearing Products:
High-Purity Bearing Steel:Self-developed alloy steel with ultra-low impurities significantly extends fatigue life and ensures long-term reliability.
Specialized Heat Treatment:Proprietary process minimizes residual austenite content, ensuring dimensional stability under high-temperature conditions.
Precision Manufacturing:In-house grinding technology achieves micrometer-level accuracy, guaranteeing rotational precision and minimizing noise.
Long Service Life :Under optimized lubrication, noise life is extended, oil oxidation is mitigated, and surface pitting is alleviated.
Product Parameters:
|
NO. |
Bearing type |
Inside Diameter |
Outer Diameter |
Inner ring width |
Shield |
Retainer(Cage) |
Balls material |
|
d |
D |
B |
|||||
|
1 |
VCMP 206*
|
30 |
62 |
16 |
Double shield |
PF |
ceramics |
|
2 |
VCMP209 |
36.5 |
85 |
19 |
Double shield |
IRON Retainer |
ceramics |
|
3 |
VCMP114 |
45 |
110 |
19 |
Double shield |
IRON Retainer |
ceramics |
|
4 |
VCMP211 |
55 |
100 |
21 |
Double shield |
PF |
ceramics |
|
5 |
VCMP212 |
45 |
110 |
22 |
Double shield |
PF |
ceramics |
|
6 |
VCMP6007* |
35 |
62 |
14 |
Double shield |
PF |
ceramics |
|
7 |
C104-2RZ |
20 |
42 |
12 |
Double shield |
PF |
ceramics |
|
8 |
626B |
6 |
19 |
6 |
Double shield |
special designing |
ceramics |
|
9 |
624 |
4 |
13 |
5 |
Double shield |
special designing |
ceramics |
|
10 |
3307 |
35 |
80 |
34.9 |
Double shield |
IRON Retainer |
ceramics |
