| Brand Name: | SKS |
| Model Number: | SR144TLZWN 3.175*6.35*2.78 |
| MOQ: | 500 pcs |
| Price: | 3USD |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100,000 units per month. |

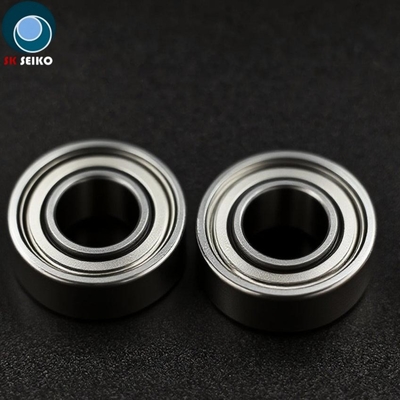

SR144TLZWN 3.175*6.35*2.78 High Speed Dental Bearing
The Performance Requirements for High Speed Dental Bearings:high precision,stable operation,silent running,high temperature resistance & sterilization compatibility,long service Life,corrosion resistance.
Specifications of high speed dental bearings:
Brand Compatibility & Precision Design:P4-grade precision for kaVo, W&H, Sirona and others. with low vibration and noise.
Materials of balls:Stainless steel & Ceramic

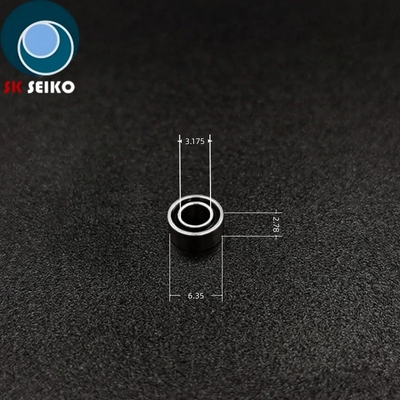

Bearing dimensions:3.175*6.35*2.38mm,3.175*6.35*2.78mm,3.175*7.938*3.571 etc.
Product Features:
High-Speed Stability:Stable operation at 450,000 rpm.
Maintenance-Free&Long Life:Solid lubrication for 6+ months of service and 135°C sterilization resistance.
Corrosion Resistance: Corrosion-resistant for stainless steel acidic/alkaline and high-temperature sterilization.
High speed dental handpiece bearing Product Parameters:
|
NO. |
Dental handpiece Bearing type |
Inside Diameter |
Outer Diameter |
Inner ring width |
Outer ring width |
Step outside diameter |
Step width |
Flange outer diameter |
Flange width |
RPM |
|
|
d |
D |
B |
C |
DK |
CK |
DF |
CF |
||
|
1 |
SR144Z |
3.175 |
6.35 |
2.38 |
2.38 |
- |
- |
|
|
450000/min |
|
2 |
SR144ZK(step) |
3.175 |
6.35 |
2.38 |
2.38 |
5.98 |
0.98 |
|
|
450000/min |
|
3 |
SR144ZW |
3.175 |
6.35 |
2.78 |
2.78 |
- |
- |
|
|
450000/min |
|
4 |
SR144ZWK(step) |
3.175 |
6.35 |
2.78 |
2.78 |
5.98 |
0.98 |
|
|
450000/min |
|
5 |
SFR144Z |
3.175 |
6.35 |
2.38 |
2.38 |
- |
- |
7.518 |
0.584 |
450000/min |
|
6 |
SFR144ZW |
3.175 |
6.35 |
2.78 |
2.78 |
- |
- |
7.518 |
0.787 |
450000/min |
|
7 |
SR2-5Z |
3.175 |
7.938 |
3.571 |
3.571 |
- |
- |
- |
- |
400000/min |
|
8 |
SFFR144WZ |
3.175 |
7.5 |
2.78 |
2.78 |
|
|
7.5 |
|
450000/min |
|
9 |
SFR144GWZ |
3.175 |
7.5 |
2.78 |
2.78 |
|
|
7.5 |
|
450000/min |
|
10 |
SFR144KZ1WZ |
3.175 |
6.35/7.5 |
2.78 |
2.78 |
6.35 |
|
7.5 |
|
450000/min |
|
11 |
SR144K1Z |
3.175 |
6.35 |
2.38 |
2.38 |
5.88 |
|
|
|
450000/min |
