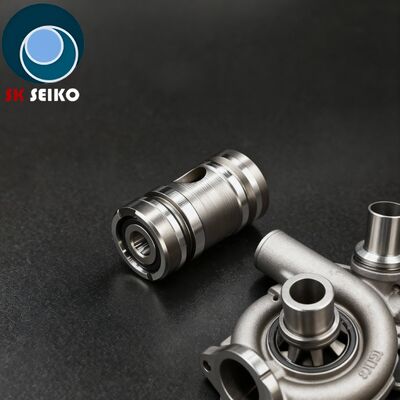

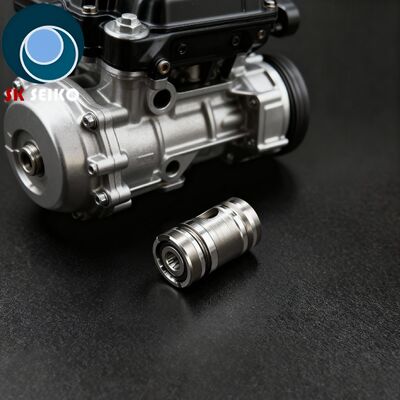

Turbocharger Dual Ceramic Ball Bearing 72038 7*19.8*38.26
Product Description:
Turbocharger Ball Bearings are designed for applications in both automotive and industrial sectors. These bearings serve as the mechanical component that supports the high-speed rotation of the turbocharger. By enabling efficient air compression, they enhance engine power output and fuel efficiency.
Turbocharger Ball Bearings Application : Perfectly usable for automotive industrial field etc.
﹒For the automotive industry:
Passenger and Commercial Vehicles: Widely used in gasoline/diesel turbocharged engines, especially in high-performance models (such as sports cars and trucks), they balance environmental regulations and driving performance by improving fuel efficiency reducing fuel consumption by 10%-15% and power output.
New Energy Hybrid Systems: Assisting motor drive in electric turbos (e-Turbo) to enhance the instant torque response of hybrid vehicles and optimize energy recovery efficiency.
﹒For industrial field:
Power Generation Equipment: Used in gas turbines and turbocharged diesel generators to improve energy conversion efficiency and ensure stable continuous power supply.
Construction Machinery and Marine Vessels: Supporting continuous boosting under high-load conditions in excavators and large marine engines, reducing equipment downtime and maintenance frequency.
Aerospace: With lightweight and high-reliability characteristics, they are suitable for power needs in extreme environments, such as auxiliary power units (APUS) and small turbo engines.
Key Advantages of Our Turbocharger Ball Bearing Products:
1. High-Speed Rotation Support
Turbocharger Ball bearings significantly reduce the rotational friction of the turbine shaft through a precisely arranged ball component structure , enabling it to withstand extremely high speeds of 200,000 rpm of revolutions per minute. This low-friction feature not only reduces energy loss but also directly enhances the engine's instant boost response
2. Dual Performance Enhancement
Optimized Startup Efficiency: The low-friction design significantly shortens the startup delay of the turbocharger, allowing the engine to quickly build boost pressure even at low speeds.
Enhanced Boost Efficiency: By stably supporting the high-speed operation of the turbine shaft, ball bearings achieve more precise air compression, helping the engine generate higher boost pressure, thereby enhancing power density ( such as, a 30%-50% power increase in diesel engines ).
3. Durability and Reliability
Made from high-strength alloy materials and surface coating technologies, ball bearings maintain anti-wear and anti-corrosion properties under high-temperature ( 300-1001°C ) and high-vibration complex conditions, with a service life of hundreds of thousands of hours to meet the long-cycle operation requirements of industrial equipment.
Product Features:
Turbocharger dual ceramic ball Bearings features:
1)Tolerance of precision grade P4 (ABEC 5)
2) Regular rotating speed 120K rpm
3) Maximum rotating speed up 200K rpm
4) Special design of sealed structure, superiorly dust-proof
5) Less vibration, Less noise, Antirust, Corrosion resistant,Heat-resistant
|
NO. |
Bearing type |
d Bore(mm) |
D Outer(mm) |
B height (mm) |
Retainer(Cage) |
Balls material |
|
d |
D |
B |
||||
|
1 |
61834 |
6 |
18 |
34.2 |
Black /Silver |
ceramics |
|
2 |
62036 |
6.5 |
20.4 |
36.7 |
Black /Silver |
ceramics |
|
3 |
72038 |
7 |
19.8 |
36.26 |
Black /Silver |
ceramics |
|
4 |
82242G02 |
8.8 |
22 |
53.7 |
Black /Silver |
ceramics |
|
5 |
82242G04 |
8.8 |
22 |
42.5 |
Black /Silver |
ceramics |
|
6 |
82242G05 |
8.8 |
22 |
42.5 |
Black /Silver |
ceramics |
|
7 |
102844 |
10.8 |
28.2 |
44.55 |
Silver |
ceramics |
|
8 |
102855 |
10.2 |
28.2 |
55.2 |
Silver |
ceramics |
|
9 |
133566 |
13 |
35 |
66 |
Black /Silver |
ceramics |
|
10 |
164468 |
16 |
44 |
68 |
Black /Silver |
ceramics |
