| Brand Name: | SKS |
| Model Number: | SR144TLKZN |
| MOQ: | 500 pcs |
| Price: | 3.5USD |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100,000 units per month |

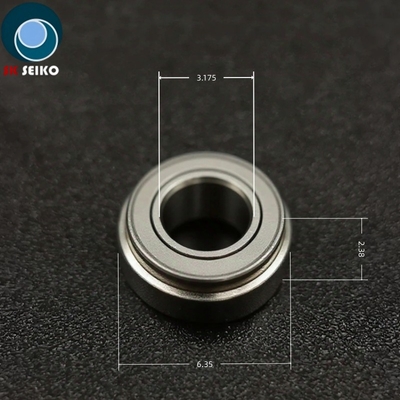

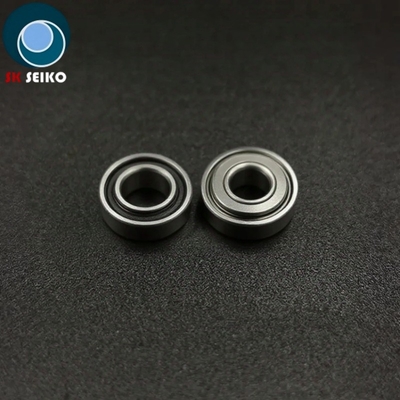

SR144TLKZN 3.175*5.98/6.35*2.38 High speed dental bearing
Demand for dental high speed handpiece bearings is high-precision, smooth and silent operation, high-speed cutting ability, withstanding repeated high temperature sterilization and long life.
Specifications of handpiece dental bearings:
1) Perfectly usable for high-speed turbine handpieces
2)Bearing structure : One shield (normal shield)
3)Materials of balls:Stainless steel & Ceramic
4)Bearing dimensions:3.175*5.98/6.35*2.38mm,3.175*6.35*2.78mm,3.175*7.938*3.571 etc.
Product Features:
﹒Perfectly usable for many brands and models of high-speed dental handpieces
﹒Working life of about 6-12 months under the normal operation and maintenance
﹒Rotating speed 350000-450000 rpm under the air-pressure of 200-250Kpa
﹒Corrosion resistant,High-temperature sterilization resistant
High speed dental handpiece bearing Product Parameters:
|
NO. |
Dental handpiece Bearing type |
Inside Diameter |
Outer Diameter |
Inner ring width |
Outer ring width |
Step outside diameter |
Step width |
Flange outer diameter |
Flange width |
RPM |
|
|
d |
D |
B |
C |
DK |
CK |
DF |
CF |
||
|
1 |
SR144Z |
3.175 |
6.35 |
2.38 |
2.38 |
- |
- |
|
|
450000/min |
|
2 |
SR144ZK(step) |
3.175 |
6.35 |
2.38 |
2.38 |
5.98 |
0.98 |
|
|
450000/min |
|
3 |
SR144ZW |
3.175 |
6.35 |
2.78 |
2.78 |
- |
- |
|
|
450000/min |
|
4 |
SR144ZWK(step) |
3.175 |
6.35 |
2.78 |
2.78 |
5.98 |
0.98 |
|
|
450000/min |
|
5 |
SFR144Z |
3.175 |
6.35 |
2.38 |
2.38 |
- |
- |
7.518 |
0.584 |
450000/min |
|
6 |
SFR144ZW |
3.175 |
6.35 |
2.78 |
2.78 |
- |
- |
7.518 |
0.787 |
450000/min |
|
7 |
SR2-5Z |
3.175 |
7.938 |
3.571 |
3.571 |
- |
- |
- |
- |
400000/min |
|
8 |
SFFR144WZ |
3.175 |
7.5 |
2.78 |
2.78 |
|
|
7.5 |
|
450000/min |
|
9 |
SFR144GWZ |
3.175 |
7.5 |
2.78 |
2.78 |
|
|
7.5 |
|
450000/min |
|
10 |
SFR144KZ1WZ |
3.175 |
6.35/7.5 |
2.78 |
2.78 |
6.35 |
|
7.5 |
|
450000/min |
|
11 |
SR144K1Z |
3.175 |
6.35 |
2.38 |
2.38 |
5.88 |
|
|
|
450000/min |
